JDM5DW Wet/Dry Mill
JDM5DW Wet/Dry Mill
Couldn't load pickup availability

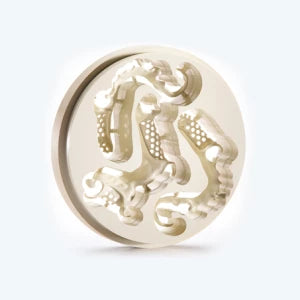

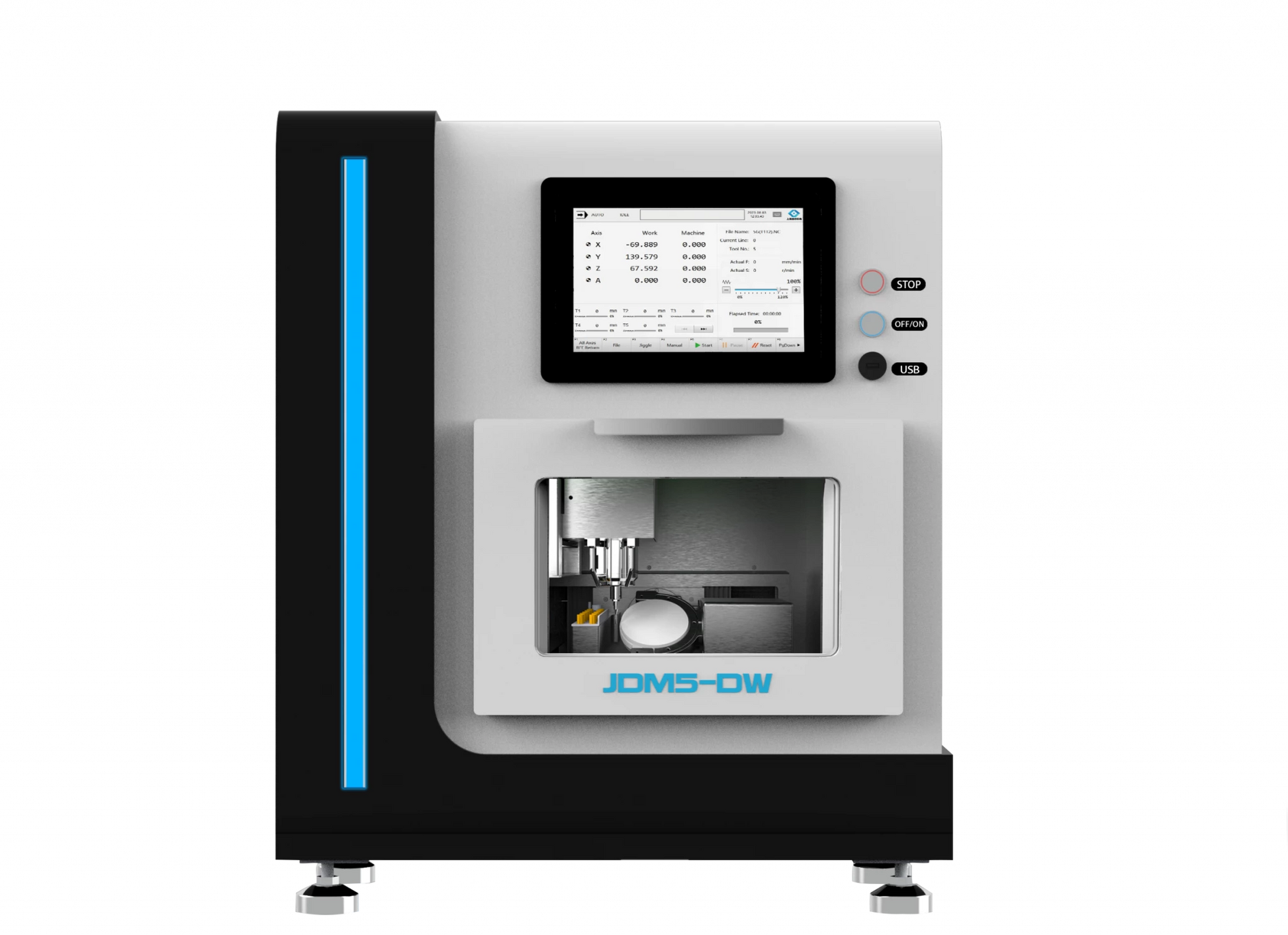

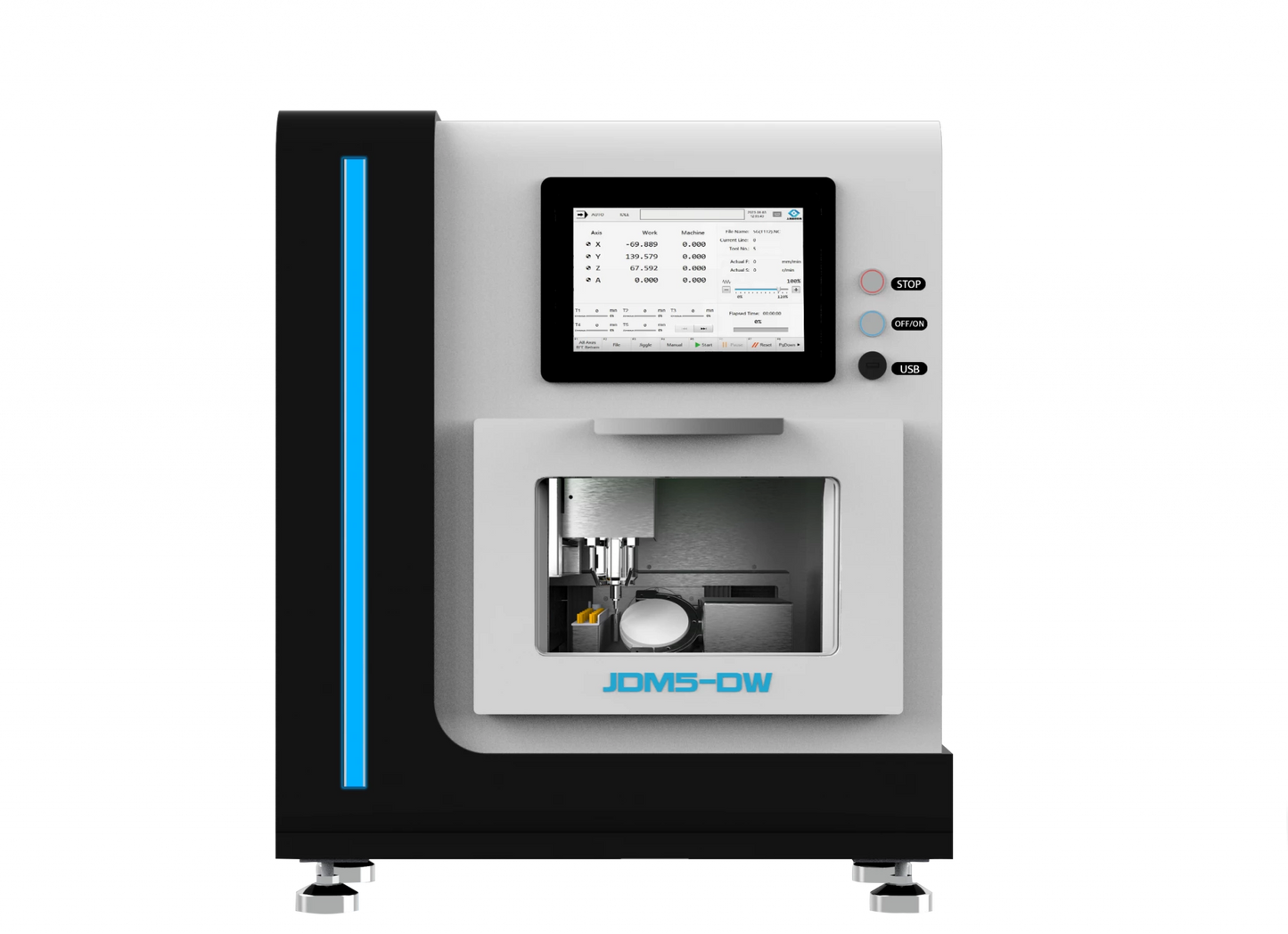

Desktop all-in-one wet and dry dental CAD/CAM milling machine, one mill for zirconia, titanium, glass ceramic, premill abutment, wax, pmma, hpp, peek, etc Strong power spindle and easy to switch between wet and dry milling mode.

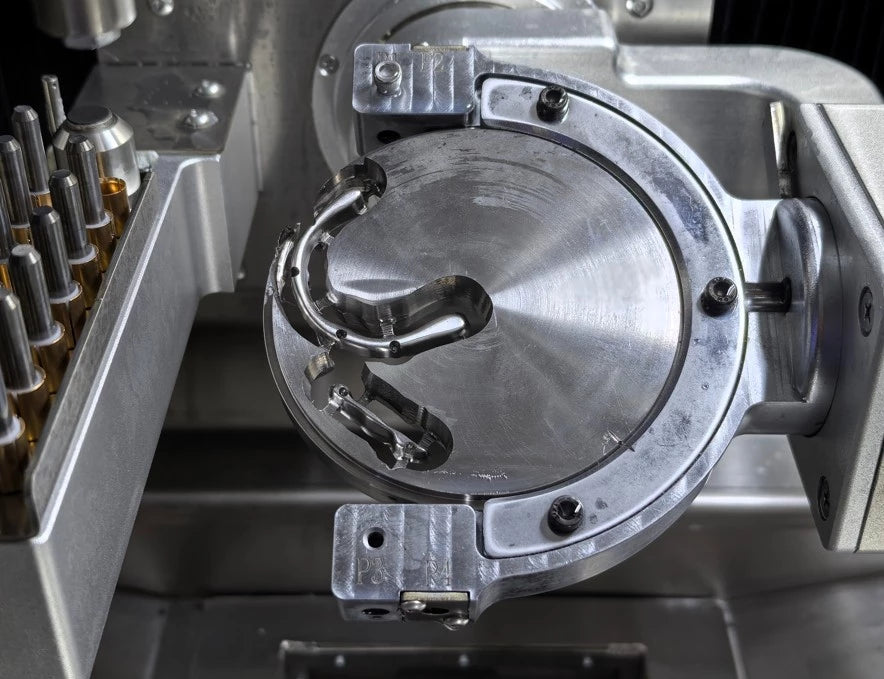

The JDM5DW dental CAD CAM Wet and Dry Milling Machine 90 degree front teeth milling is very useful when detailed milling is required like interproximal areas, and gingiva lines. It eliminates the cumbersome process of hand and dramatically reduces working time. This generates new application possibilities and more flexibility for creating the expected tooth restoration.
The compact and stable basic design of the machine enables precise work in block and blank milling.
Technical highlights
- High speed metal milling with powerful spindle
- Expanded 14 tools magazines for uninterrupted milling
- Milling of all important materials used in the dental field
- B-axis tilt angle up to 30°
- High frequency spindle with up to 60,000 rpm
- Integrated control PC with touch screen
- Servo motors on all axes
- Chip protection of the tool changer
Product Video:
Strong spindle power:
Equipped with powerful 2.5kw spindle power to ensure the milling precision and stability.
Up to 60,000rpm rotating speed, capable of milling different kinds of materials for implant restorations, also for glass ceramic and premilled abutment of the daily work for dental laboratories
Precise and stable milling:

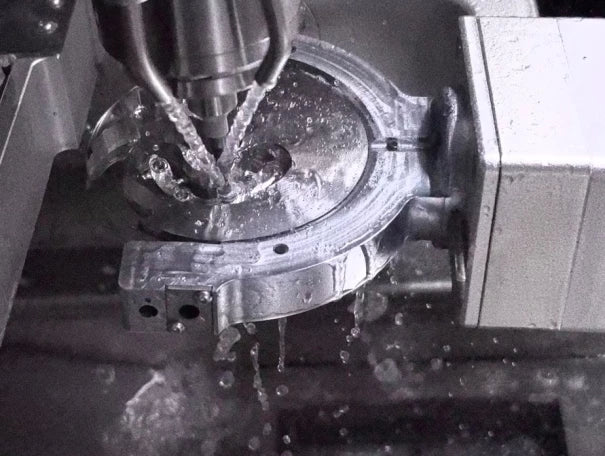

JDM5DW dental titanium metal milling machine uses cast iron for its main structure material, also with its one-piece body molding, no welds are needed, which makes the milling machine much heavier but more stable in milling the titanium restorations,.

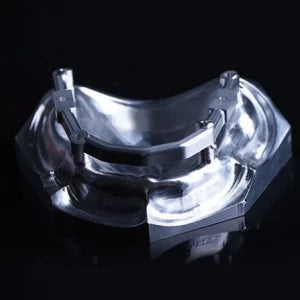

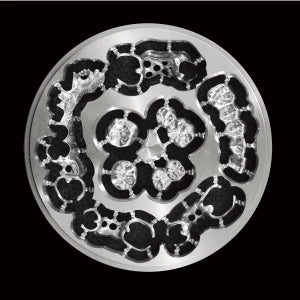

It can mill various restorations, such as implant bridge (All-on-X implant bridge) and implant bar, titanium crown, titanium premilled abutment and different materials such as titanium, soft co-cr, glass ceramic, etc.
