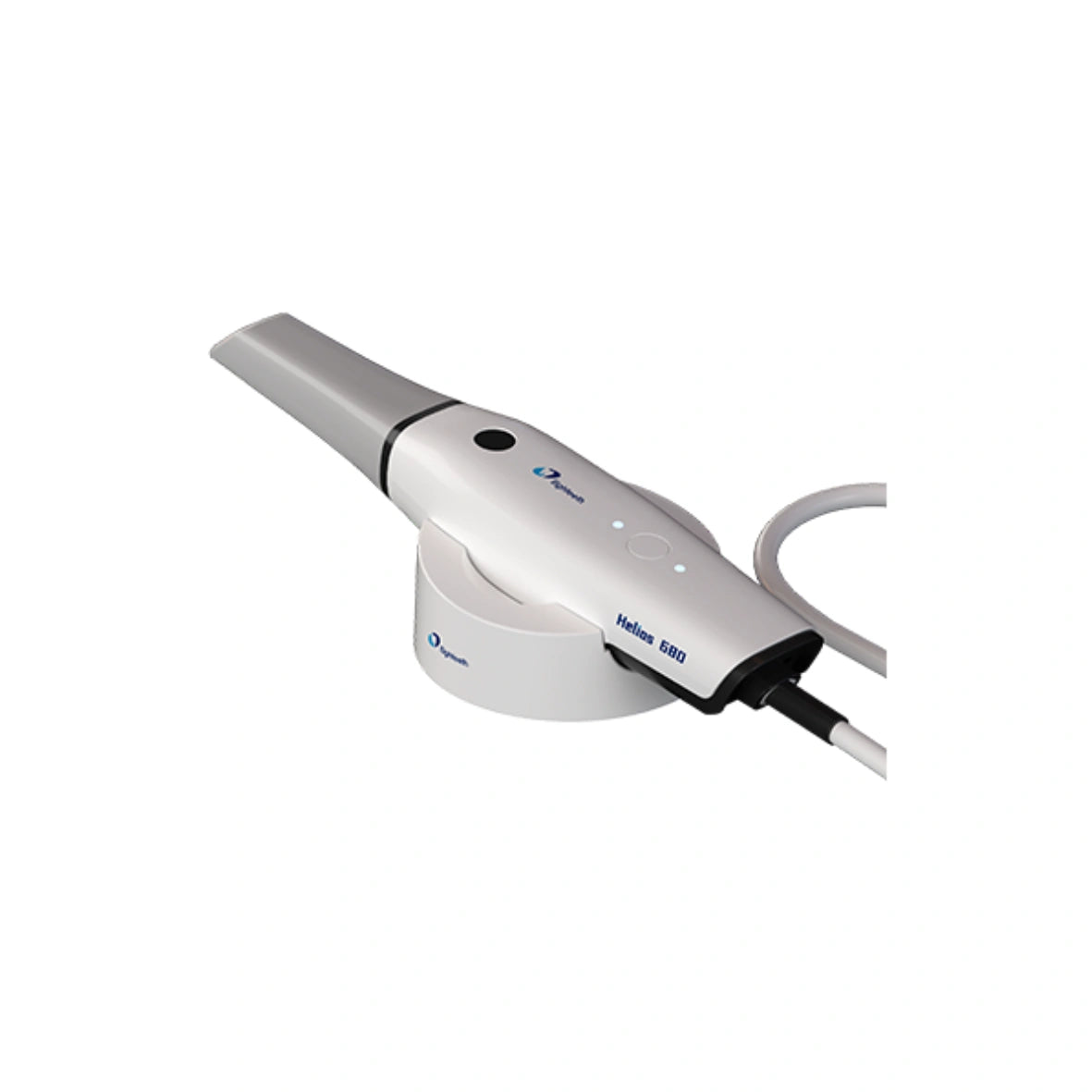

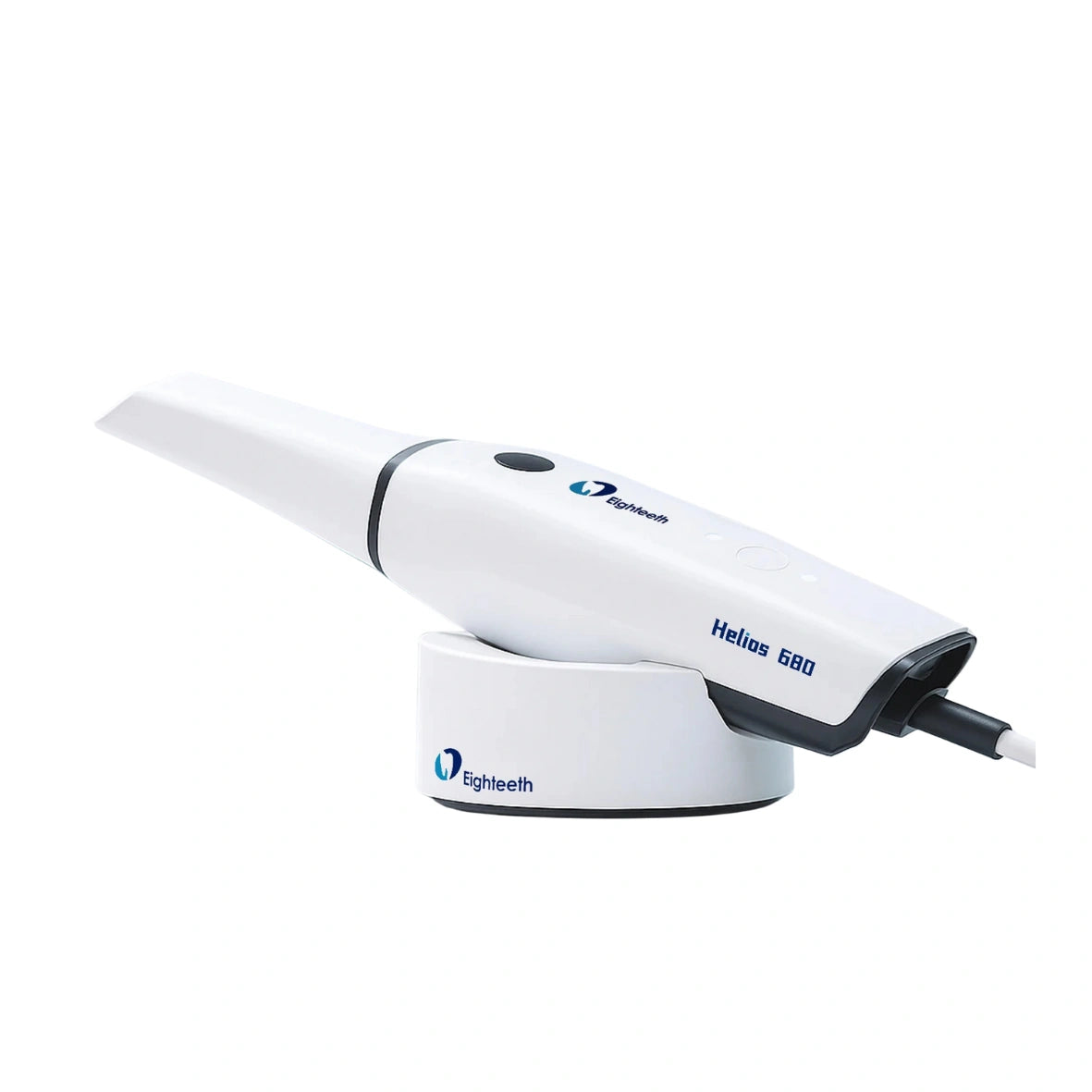

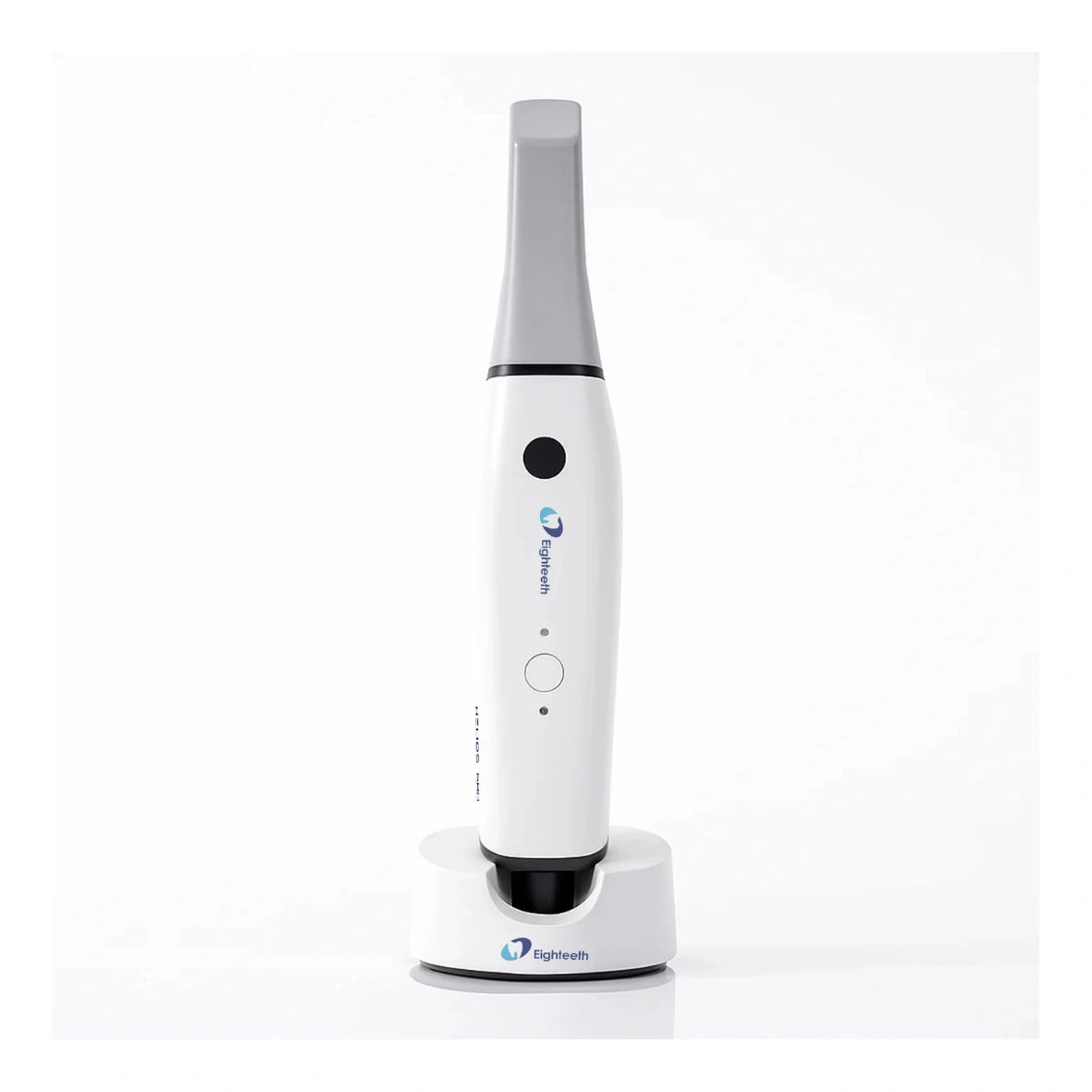

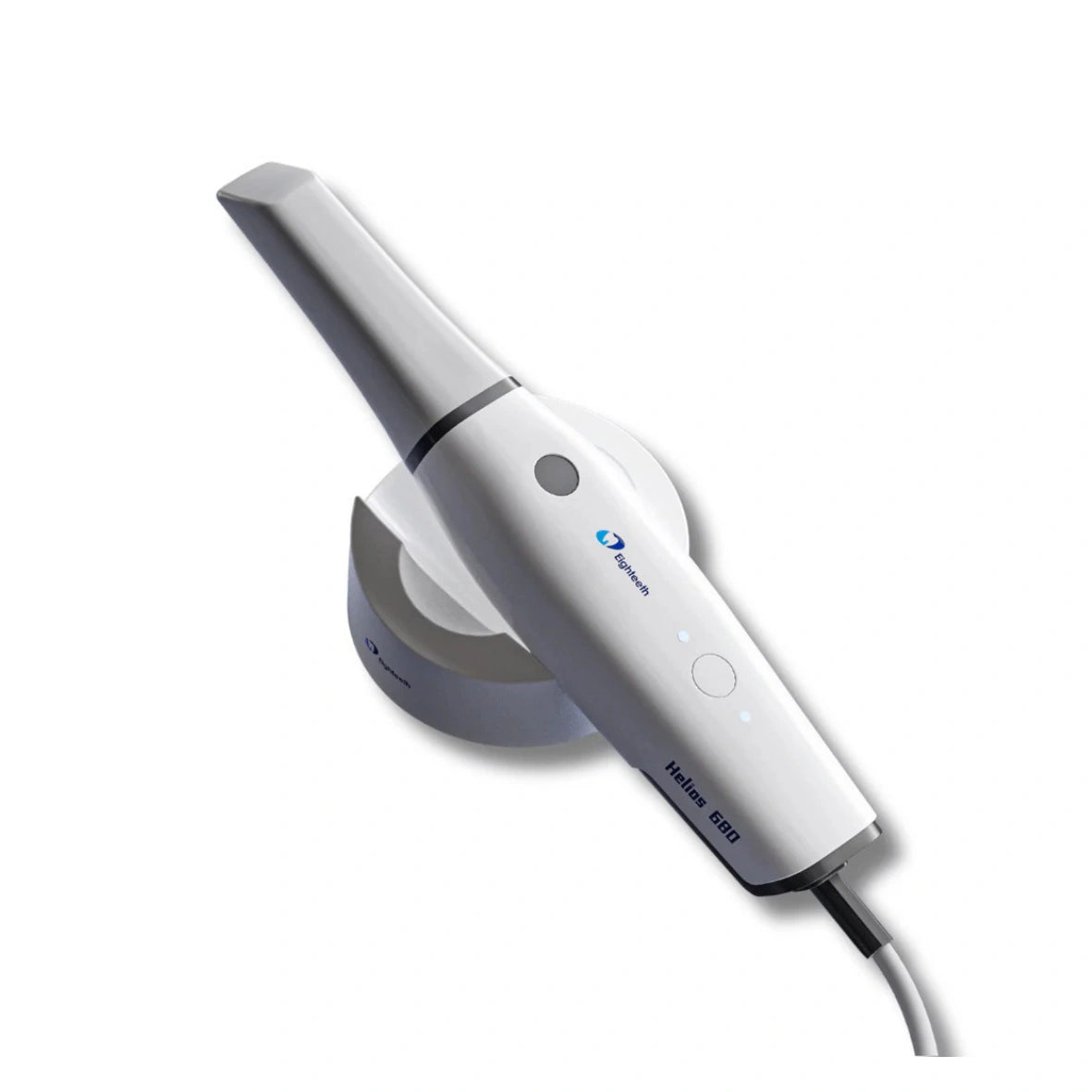

Helios 680 Intraoral Scanner

PRODUCT DETAILS

The Helios 680 is a digital intraoral scanner from Eighteeth designed for dental impression workflows. It combines lightweight handling, full-color capture, and automatic calibration with a wired USB 3.0 connection. Open file exports and digital workflow tools support collaboration between dental clinics and laboratories.

Product Features & Benefits

Precision for Digital Impressions – Published precision of 16 µm for full-arch scans and 8 µm for individual teeth supports detailed digital models.

Smooth, High-Speed Capture – Scan at 30 frames per second with LED structured-light imaging and an 18 mm depth of field.

Lightweight, Ergonomic Design – At 161.5 g, the curved handpiece and refined matte finish support comfortable handling.

Full-Color Imaging – 24-bit color capture helps communicate tooth appearance to patients and supports laboratory color matching.

Calibration-Free Workflow – Automatic adaptive color and accuracy calibration eliminates manual calibration.

Plug-and-Scan Connection – A wired USB 3.0 connection with a 1.8 m cable provides a simple single-cable setup.

Flexible, Patient-Friendly Tips – Removable, 180-degree reversible tips have smooth, rounded surfaces. Powder-free scanning requires no heating, and the tips withstand 100 sterilization cycles. Follow the manufacturer's cleaning and sterilization instructions.

Enhanced Anti-Fogging – Optimized duct design helps maintain a clear scanning view.

Air Mouse Motion Control – Use the handpiece to manage the software and rotate 3D models.

Open Digital Exports – STL, PLY, and OBJ formats support sharing models with compatible dental CAD/CAM systems.

Digital Workflow Tools

AI Health Reports – Visual reports present oral health information and treatment plans to support patient communication.

Orthodontic Simulation – AI-powered automatic tooth alignment provides before-and-after visualizations for treatment discussions. This feature requires an NVIDIA graphics card.

Model Builder – Add bases to 3D models within the software, then save and share models.

Cloud Collaboration – AWS-powered cloud management supports model sharing and order collaboration. Advertised cloud storage includes 100 GB free; availability and terms depend on your software account and sales package.

Scan Review and Editing – Tools include auto/manual bite, enhanced implant workflow, shining mode, occlusion analysis, undercut detection, texture mapping, tooth measurement, margin-line drawing, intraoral camera, Auto AI, upper/lower jaw swapping, and software updates.

Product Parameters

Recommended System Requirements
