Aidite CPD 100 Set – Cure, Cleaner & Software

$7,700.00

Sale Sold out

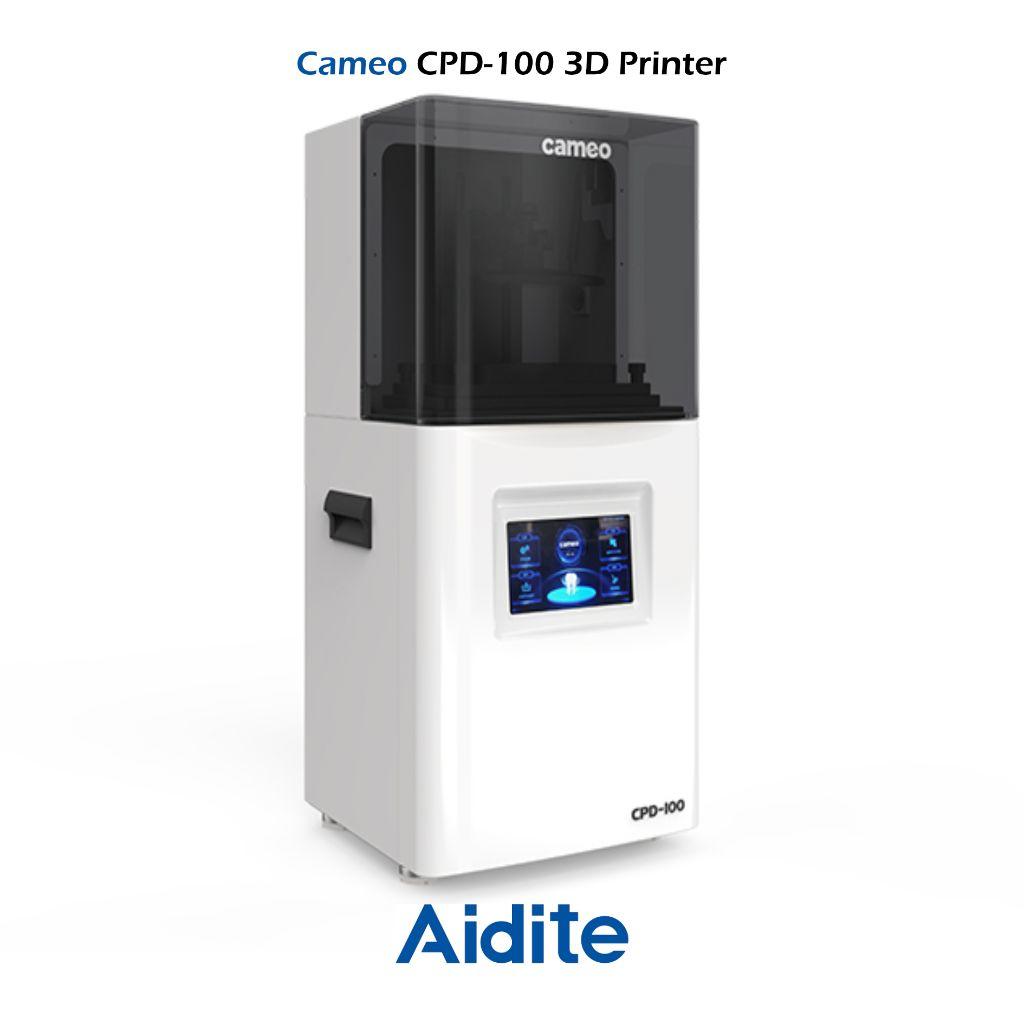

3D Printer CPD 100 set-cure/Cleaner/Software

The CPD-100 3D printer is designed for the field of oral repair and implant, especially for repair cases with high precision of guide plate, veneer, single crown, and connecting bridge. 26mm/h high speed printing: AI optimization technology is adopted to ensure the perfect match between motor operation and optical machine exposure time, so that 26mm/h high-speed printing can be guaranteed under the condition of 0.05mm layer thickness, and the printing molding time can be shortened.

Meet the application:

Key Features:

All-in-One Package: Printer, cure station, cleaning unit, and software included
High Precision Printing: Micron-level accuracy for detailed dental work
Fast & Efficient: Reduce production time without compromising quality
User-Friendly Interface: Simple operation for clinicians and lab technicians
Wide Resin Compatibility: Supports dental model resin, castable resin, clear resin, and more
Software Integration: Compatible with standard dental CAD/CAM software

Product Video:

Product Parameters:

Parameter	Specification
Printer Type	LCD-based Dental 3D Printer
Model	CPD100
Printing Technology	MSLA (Masked Stereolithography)
Build Volume	192 × 120 × 200 mm
Layer Resolution	25–100 microns
XY Resolution	50 microns
Print Speed	Up to 50 mm/hour
Supported Resin Types	Dental Model Resin, Castable Resin, Clear Resin, Standard Dental Resin
Connectivity	USB, Wi-Fi (Optional)
Supported File Formats	STL, OBJ
Touchscreen Interface	5-inch color touchscreen
Power Supply	100–240V, 50/60Hz
Dimensions (L×W×H)	350 × 350 × 500 mm
Weight	15 kg
Operating Temperature	18–28°C
Operating Humidity	30–70% RH
Software Compatibility	Standard dental CAD/CAM software
Curing Station Included	Yes
Cleaning Unit Included	Yes
Warranty	12 months standard
